Drone Simulation

Serious Training

AeroSIM-RC is a realistic drone simulator for the beginner pilot and
for the experienced pilot to practise advanced manoeuvres and camera control.

Features

• Training Programs
• Flight Modes: Manual, Attitude, GPS
• Control Modes: Course Lock
• Camera Gimbal





The 'Advance' is equipped with a gimbal specifically configured for aerial photography and video practice.
The gimbal can pan ±330°, and tilt down to -90°

Flight Modes and Functions

• 3D (aerobatics)
• Manual (self level)
• Attitude (self level + altitude hold)
• GPS (position hold)
• Altimeter for keeping constant altitude
• RTH (Return To Home)
• Course Lock mode (DJI name) / Care Free mode (Mikrokopter name)
• Camera Gimbal stabilization
• Lights
• Parachute (Flight Termination System)
• Camera Take Photo (saved as jpg)




Camera Gimbal

• Camera pan, tilt and zoom.
• Stabilized gimbal control, independent of drone heading.

Multirotor Basic Training Program

Learn to pilot a multirotor

• Zero accidents, zero repair cost.
• Based on the recommendations from experienced instructors and Certification exams.

Altitude control familiarisation

• Learn to control with precision the vertical motion of the multirotor.
• Lift the multirotor to the altitude indicated by the arrows.
  Follow the arrows when they move to a different altitude.
• The first times it can be quite difficult to keep the multirotor from banging the ground or rocketing into the sky.

Hovering inside a circle

• Master hovering
• Take off, then keep the multirotor inside the circle.

• Translate the multirotor to the new position each time the circle moves.
• The circle will move in a square patterns in order to practise left, right, and diagonal translations.
  In the first exercises, the altitude is controlled by the simulator.

Nose-in hovering

• Master nose-in hover (when the multirotor is heading at the pilot)
• Take off, then keep the multirotor inside the circle.
• The challenge here is that when the multirotor is heading the pilot, the controls seem to be reversed (e.g. left stick moves the multirotor to the right)

Landing inside the circle

• Master landing.
• Take off and land inside the circle.
  Each time the circle moves to a new position, take off and land again inside the circle.
• The circle will move in square patterns in order to practise left, right, and diagonal translations.

Forward Flight

• Master forward flight (i.e. flying with the multirotor nose always pointing in the direction of flight)
• Take off, and fly the indicated pattern while yawing the multirotor to always point to the direction of flight.
• This is a quite difficult exercise. Helpful rotating arrows are displayed if the heading is incorrect.

VLOS Pilot Training Program

Advance exercises available in the Pro edition

• Skills you need to pilot your multirotor in visual line of sight (VLOS).

Hover

• Understanding the difference between GPS flight mode and ATTi.
• Nose-out and nose-in exercises.
• Learn to compensate for the wind in Atti mode.

Pirouettes

• 4-point and 8-point pirouettes.

• Learn to compensate for the wind in Atti mode.

Translations

• Sideway patterns, square patterns and diamond patterns.
• Learn to use the Course Lock control mode.
• Nose-out and nose-in exercises.

Circles

• Learn to fly circles moving nose-forward.

Vertical patterns

• Square and diamond patterns with ascents.
• Nose-out and nose-in exercises.

Descent

• Understanding the Vortex Ring State:

  • In a vertical descent with a heavy payload, vortices of "dirty air" are formed under each propeller.

  • When desdending fast into this "dirty air", grip is lost, in essence, getting trapped into the propeller downwash.
  • In this situation, increasing the throttle is ineffective.
  • To escape from the VRS, apply full stick to move sideways or forwards into clean air.
  • Wikipedia explanation of multirotor Vortex Ring State
• Learn to escape from VRS.
• Learn the slope descent to avoid VRS.
• Learn the spiral descent to avoid VRS.

Available Multirotors

Multirotors
GAUI 330X-S	0.58 33cm x4 LiPo 11.1 V 1.2 Ah	GAUI 330X-S is a four motor multirotor stablilised with gyroscopes. Suitable for 3D aerobatics.
Advance	3.90 62cm x4 LiPo 22.2 V 8 Ah	Multirotor for aerial video productions, with retractable landing gear and stabilized and GPS modes.
ATX8 Pro	6.15 85cm x8 LiPo 22.2 V 16 Ah	This multirotor has eight fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
ATX8	3.73 71cm x8 LiPo 14.8 V 5 Ah	This multirotor has eight fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
CineStar 8	6.86 95cm x8 LiPo 14.8 V 8 Ah	This multirotor can carry professional cinema cameras, it has eight fixed pitch rotors, and it is stablilised with Mikrokopter electronics that keep the aircraft level.
CyberQuad MINI	1.60 47cm x4 LiPo 14.8 V 4 Ah	The CyberQuad is an electric ducted quadrotor Vertical Take Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV). This is a type of helicopter with four rotors in square configuration, stablilised with gyroscopes and accelerometers to stay level.
CyberQuad MAXI	2.50 48cm x4 LiPo 18.5 V 5.4 Ah	The CyberQuad MAXI multirotor is an electric ducted quadrotor Vertical Take Off and Landing (VTOL) Unmanned Aerial Vehicle (UAV).
TBS Discovery PRO	1.51 47cm x4 LiPo 14.8 V 3.3 Ah	This multirotor by TBS is stablilised with Naza electronics and GPS to hold the position in strong winds.
DJI F450	0.88 45cm x4 LiPo 11.1 V 2.2 Ah	This multirotor by DJI is stablilised with Naza electronics and GPS to hold the position in strong winds.
DJI Phantom	1.16 37cm x4 LiPo 11.1 V 3 Ah	This DJI multirotor has Atti, Manual and GPS flight modes, including automatic Return To Home.
FleX-8	5.40 75cm x8 LiPo 22.2 V 9 Ah	X-8 multirotor for inspection of industrial assets.
MikroKopter Hexa	1.76 56cm x6 LiPo 14.8 V 3.3 Ah	This MikroKopter multirotor has six fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.

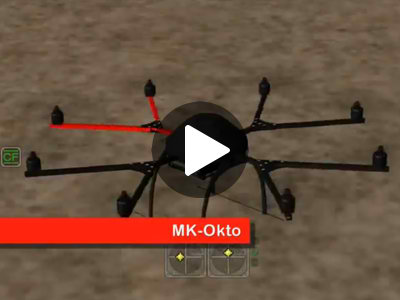

MikroKopter Okto	2.38 77cm x8 LiPo 14.8 V 5 Ah	This MikroKopter multirotor has eight fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
MikroKopter Okto2	2.58 66cm x8 LiPo 14.8 V 5 Ah	This MikroKopter multirotor has eight fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
MikroKopter OktoXL	3.29 80cm x8 LiPo 14.8 V 6.6 Ah	This MikroKopter multirotor can carry heavy loads, it has eight fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
MikroKopter Quadro	1.08 50cm x4 LiPo 14.8 V 2.2 Ah	This basic MikroKopter multirotor has four fixed pitch rotors, and it is stablilised with accelerometers and gyroscopes that keep the aircraft level.
MultiWiiCopter Scarab Triikopta	1.19 66cm x3 LiPo 14.8 V 2.7 Ah	This multirotor has three fixed pitch rotors and a servo that tilts the tail rotor sideways to yaw. The gyroscopes keep the aircraft under control while performing flips and loops.
MultiWiiCopter Scarab YSiix	1.96 66cm x6 LiPo 14.8 V 3.1 Ah	This multirotor has six fixed pitch rotors, and it is stablilised with gyroscopes that keep the aircraft under control while performing flips and loops.
MultiWiiCopter Scarab Reconn	1.29 45cm x4 LiPo 14.8 V 4.2 Ah	The Scarab Reconn is ready for FPV with a front mounted HD camera counter balanced by a rear mounted battery
Quad-IV	1.61 60cm x4 LiPo 11.1 V 2.2 Ah	This multirotor has four rotors, stablilised with a gyroscope and two accelerometers that keep the aircraft level
